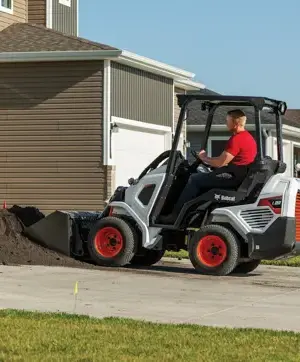

L23 Small Articulated Loader
Horsepower 24.8 hp Rated Operating Capacity (ISO) (Straight) 1395 lbs Rated Operating Capacity (ISO) (Articulated) 1159 lbs Operating Weight 3790 lbs Auxiliary Std Flow 11.4 gpm Width (over tires) 43.2 in Horsepower 24.8 hp Fuel Consumption 1.1 gph Rated Operating Capacity (ISO) (Straight) 1395 lbs Rated Operating Capacity (ISO) (Articulated) 1159 lbs ROC with Counterweight Option - Articulated 1471 lbs ROC with Counterweight Option - Straight 1815 lbs Operating Weight 3790 lbs Travel Speed 8.2 mph Fuel Tank 9.6 gal System Relief @ Quick Couplers 2900 psi Auxiliary Std Flow 11.4 gpm Articulation Angle 43 deg Height to Bucket Hinge Pin - Extended 85.4 in Outside Turning Radius 100.9 in Inside Turning Radius 77.2 in Length with Standard Bucket 122.4 in Length without Attachment 93.2 in Width (with bucket) 44 in Width (over tires) 43.2 in Reach @ Maximum Height 16.8 in Dump Angle @ Maximum Height 40 deg Ground Clearance 5.5 in Rollback Angle 32 deg Wheelbase 47.2 in Tire Size 23X8.5-12 Wheel Tread 34.4 in Main Drive Hydrostatic pump driving 4 independent wheel motors Front and Rear Work Lights Standard Air Conditioning Not Applicable Backup Alarm Standard Cab Enclosure Optional Cab Heater Optional Operating Lights Optional Turbocharged Engine Not Applicable Rear Window Optional Rotating Flashing Beacon Optional Lift-Arm Support Standard Grab Handles N/A Suspension Seat Standard Turn Signals Optional Two Speed Travel Not Applicable Deluxe Instrumentation Not Applicable Hydraulic Bucket Positioning Standard Auxiliary Hydraulics Standard Spark Arrestor Muffler Standard Bob-Tach Attachment System Standard Tires-Ply Rating 10 Cup Holder Standard Horn Standard
