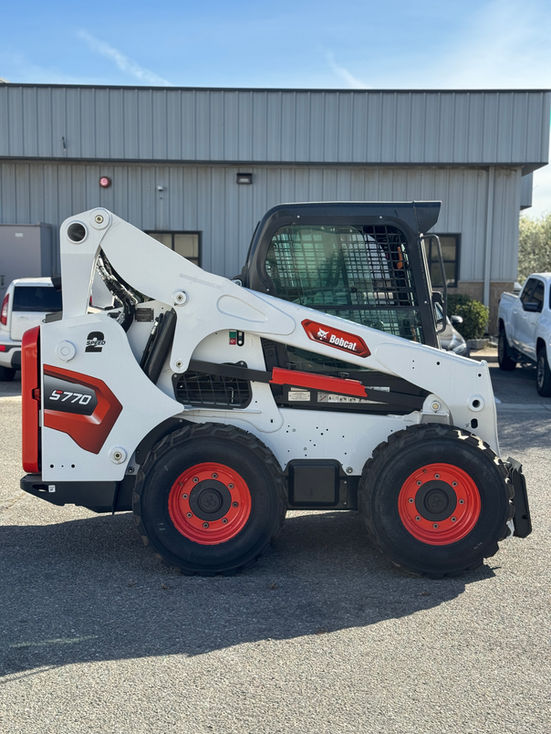

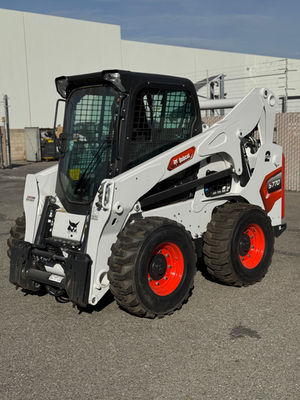

S770 Classic Skid-Steer Loader
Horsepower:
92 hp
Operating Weight:
9154 lbs
Operating Capacity:
3350 lbs
Attachments:
64
Explore the Bobcat® S770 skid-steer loader for sale, built for high-output material handling, hard-surface productivity, roadwork, snow removal, heavy material movement, landscaping, construction, grading, backfilling, digging, loading, hauling, pallet handling, site cleanup, demolition support, utility work, sweeping, driveway work, property maintenance, rental fleet productivity, and demanding jobsite applications. With 92 horsepower, 3,350-pound rated operating capacity, 3,500-pound rated operating capacity with 200-pound counterweight, 3,550-pound rated operating capacity with 300-pound counterweight, 3,650-pound rated operating capacity with 400-pound counterweight, 6,700-pound tipping load, 9,154-pound operating weight, 7.1 mph travel speed, 12.3 mph high travel speed with standard two-speed travel, 23 gpm auxiliary standard flow, 36.6 gpm auxiliary high flow, 3,500 psi auxiliary system pressure, 72.1-inch overall width, 81.3-inch overall height, 132-inch hinge pin height, 33.4-inch reach at maximum height, standard two-speed travel, standard auxiliary hydraulics, Bob-Tach® attachment system, optional Power Bob-Tach, optional ride control, optional high-flow hydraulics, selectable joystick controls, Deluxe Display, rearview camera integration, turbocharged engine performance, and proven Bobcat durability, the S770 helps operators lift, load, place, and move more material with confidence in high-demand jobsites. Ideal for contractors, municipalities, rental fleets, snow removal crews, roadwork teams, utility crews, property owners, farmers, landscapers, and grounds maintenance professionals, the Bobcat S770 delivers powerful skid-steer loader productivity with strong lift performance, high hydraulic output, excellent reach, and durable Bobcat performance. Explore Bobcat S770 availability, pricing, attachments, features, financing options, and dealer support through Bobcat GDN today.
S770 Classic Skid-Steer Loader Key Features
The Bobcat S770 skid-steer loader is designed for operators who need more output, stronger lift capacity, responsive hydraulics, powerful breakout force, efficient material handling, and dependable performance on hard surfaces and demanding jobsites. Its 92-horsepower turbocharged engine, 9,154-pound operating weight, 3,350-pound rated operating capacity, 6,700-pound tipping load, 23 gpm auxiliary standard flow, 36.6 gpm auxiliary high flow, 3,500 psi auxiliary system pressure, 72.1-inch overall width, 132-inch height to hinge pin, and 33.4-inch reach at maximum height make it a strong choice for loading trucks, carrying materials, grading, backfilling, moving snow, hauling mulch, handling pallets, digging, sweeping, roadwork, and heavy-duty material movement. With standard two-speed travel, standard Bob-Tach attachment system, standard auxiliary hydraulics, optional Power Bob-Tach, optional high-flow hydraulics, standard suspension seat, optional ride control, optional rear hydraulics, and Deluxe Display with rearview camera integration, the S770 helps crews complete demanding work with power, comfort, and efficiency.
S770 Classic Skid-Steer Loader Performance & Specs
Horsepower | 92 hp |
Rated Operating Capacity | 3350 lbs |
Tipping Load | 6700 lbs |
Operating Weight | 9154 lbs |
Travel Speed - High (1-Speed) | 7.1 mph |
Travel Speed - Low (2-Speed) | 7.1 mph |
Travel Speed - High (2-Speed) | 12.3 mph |
Auxiliary Std Flow | 23 gpm |
Auxiliary High Flow | 36.6 gpm |
Aux System Pressure | 3500 psi |
Length without Attachment | 114.4 in |
Overall Width | 72.1 in |
Overall Height | 81.3 in |
Height to Hinge Pin | 132 in |
Reach @ Maximum Height | 33.4 in |
Horsepower | 92 hp |
Hydraulic Horsepower - Standard Flow | 47 hp |
Hydraulic Horsepower - High Flow | 74.7 hp |
Rated Operating Capacity 200 lb. Counterweight | 3500 lbs |
Rated Operating Capacity 300 lb. Counterweight | 3550 lbs |
Rated Operating Capacity 400 lb. Counterweight | 3650 lbs |
Rated Operating Capacity | 3350 lbs |
Tipping Load | 6700 lbs |
Operating Weight | 9154 lbs |
Travel Speed (2-speed option) | 12.3 mph |
Travel Speed - High (1-Speed) | 7.1 mph |
Travel Speed - Low (2-Speed) | 7.1 mph |
Travel Speed - High (2-Speed) | 12.3 mph |
Fuel Tank | 23.9 gal |
System Relief @ Quick Couplers | 2450 psi |
Auxiliary Std Flow | 23 gpm |
Auxiliary High Flow | 36.6 gpm |
Aux System Pressure | 3500 psi |
Length with Standard Bucket | 141.1 in |
Length without Attachment | 114.4 in |
Width (with bucket) | 74 in |
Overall Width | 72.1 in |
Overall Height | 81.3 in |
Height to Hinge Pin | 132 in |
Reach @ Maximum Height | 33.4 in |
Turning Radius | 83.7 in |
Wheelbase | 48.3 in |
Standard Bucket | 74 in |
Standard Tires | 12 X 16.5 |
Fuel Gauge | Yes |
Hourmeter | Yes |
Engine Coolant Temperature | Yes |
Engine Air Filter | Replaceable dry paper cartridge with separate safety element |
Engine Oil Pressure | Yes |
Joystick Control | Optional |
Air Conditioning | Optional |
Adjustable Seat | Standard |
Backup Alarm | Standard |
BICS System (Interlock) | Standard |
Cab Enclosure | Optional |
Sound Option | Optional |
Cab Heater | Optional |
Operating Lights | Standard |
Parking Brake | Standard |
Radio | Optional |
Turbocharged Engine | Standard |
Rear Window | Standard |
Top Window | Standard |
Lift-Arm Support | Standard |
Seat Belt | Standard |
Suspension Seat | Standard |
Two Speed Travel | Standard |
Deluxe Instrumentation | Optional |
Engine Shutdown | Standard |
Hydraulic Bucket Positioning | Optional |
High Flow Option | Optional |
Auxiliary Hydraulics | Standard |
Spark Arrestor Muffler | Standard |
Bob-Tach Attachment System | Standard |
Power Bob-Tach | Optional |
ACS (Switchable Controls) | Optional |
Ride Control | Optional |
Rear Hydraulics | Optional |
Horn | Standard |
