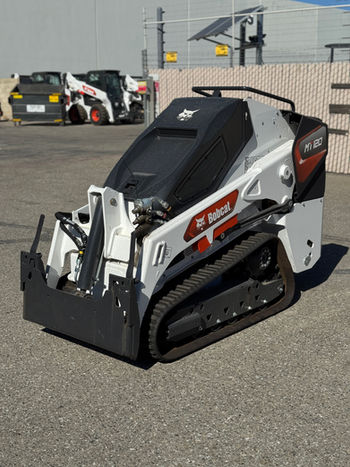

MT120 Mini Track Loader

Horsepower:

24.5 hp

Operating Weight:

3720 lbs

Operating Capacity:

1200 lbs

Attachments:

30

Explore the Bobcat® MT120 mini track loader for sale, built for best-in-class lift height and reach, compact access, strong rated operating capacity, attachment versatility, low ground pressure, easy operation, landscaping, hardscaping, construction, trenching, digging, grading, backfilling, hauling, loading, demolition support, utility installation, snow removal, sweeping, stump grinding, and property maintenance. With a 1,200-pound rated operating capacity, 88.2-inch lift height and reach performance, pilot controls, 4.7 mph travel speed, 36-inch standard track width, high-torque non-DPF engine, standard counterweights, Machine IQ telematics, and compatibility with more than 50 Bobcat attachments, the MT120 helps operators move faster and work smarter in tight spaces. Ideal for landscapers, contractors, hardscape crews, rental fleets, municipalities, utility crews, and property owners, the Bobcat MT120 delivers powerful mini track loader productivity with premium features and low ownership costs. Explore Bobcat MT120 availability, pricing, attachments, features, and dealer support through Bobcat GDN today.

MT120 Mini-Track Loader Key Features

The Bobcat MT120 mini track loader is designed for operators who need powerful loader performance, compact maneuverability, premium controls, and fast attachment changes in restricted jobsites. At just under 36 inches wide with standard tracks, the MT120 can access tight spaces while still delivering a 1,200-pound rated operating capacity, best-in-class 88.2-inch lift height, approximately 22 inches of reach at maximum height, and a top travel speed of 4.7 mph in forward and reverse. With low-maintenance design, tool-free service access, Machine IQ telematics, and smooth pilot controls, the MT120 helps crews lift, load, dig, haul, grade, backfill, and place materials efficiently.

MT120 Mini-Track Loader Performance & Specs

Engine Model	3L123-BC4A
Horsepower	24.5 hp
Ground Pressure (Optional Tracks)	3.9 psi
Ground Pressure (Standard Tracks)	4.3 psi
Rated Operating Capacity (ISO)	1200 lbs
Operating Weight	3720 lbs
Travel Speed - Forward	4.7 mph
Travel Speed - Reverse	4.7 mph
System Relief @ Quick Couplers	3045 psi
Auxiliary Std Flow	11.8 gpm
Length without Attachment	86.8 in
Width	35.6 in
Height to Bucket Hinge Pin	88.2 in
Reach @ Maximum Height	22.2 in
Track Width - Standard	9.1 in
Track Width - Wide	11 in

Engine Model	3L123-BC4A
Horsepower	24.5 hp
Displacement	75 cubic in

Ground Pressure (Optional Tracks)	3.9 psi
Ground Pressure (Standard Tracks)	4.3 psi
Rated Operating Capacity (ISO)	1200 lbs
Tipping Load	3469 lbs
Operating Weight	3720 lbs
Travel Speed - Forward	4.7 mph
Travel Speed - Reverse	4.7 mph

Fuel Tank

8.1 gal

System Relief @ Quick Couplers	3045 psi
Auxiliary Std Flow	11.8 gpm

Length without Attachment	86.8 in
Width	35.6 in
Height to Bucket Hinge Pin	88.2 in
Reach @ Maximum Height	22.2 in
Track Width - Wide	11 in
Track Width - Standard	9.1 in
