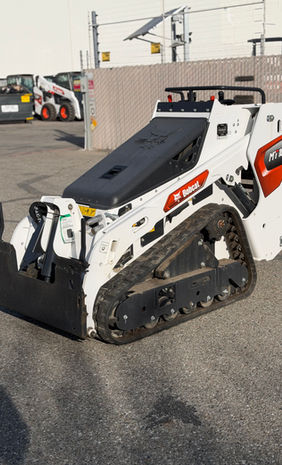

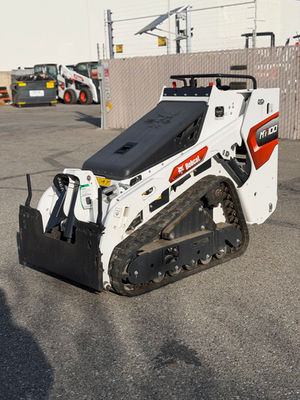

MT100 Mini Track Loader
Horsepower:
24.8 hp
Operating Weight:
3390 lbs
Operating Capacity:
1000 lbs
Attachments:
30
With an industry-leading attachment offering, compact 36” width with standard tracks, impressive lift and low-maintenance components, the Bobcat® MT100 mini track loader brings performance and versatility to demanding jobsites. The MT100 combines responsive controls, a comfortable ride-on platform and easy-access service points.
MT100 Mini-Track Loader Key Features
The Bobcat MT100 is a compact, 36-inch-wide mini track loader that delivers a proven 1,000-pound rated operating capacity, rugged rubber-track traction and access to 50-plus attachments (including all size and interface options) to help crews replace manual labor and get more work done.
The integrated ride-on platform provides an effective vantage point to the bucket cutting edge or attachment, as well as to the sides of the machine.
The responsive ISO joysticks provide confident control while soft hip pads support comfortable operation with less strain, making the MT100 a machine that's easy to learn and easy to run.

Compatible with over 50 approved attachments (including size and interface options), the Bobcat MT100 helps crews move quickly from digging and trenching to grading, hauling and material handling.
Both the Bob-Tach® and Common Industry Interface (CII) mounting systems make attachment changes simple and give you the ability to take on more jobs with confidence.

The MT100 delivers impressive performance for its size. Powered by a durable 24.8 hp non-DPF diesel engine, it combines efficient hydraulics, fast cycle times, strong breakout force and exceptional pushing capability to tackle demanding jobs. A 1,000 lb rated operating capacity, 4.1 mph travel speed and moveable counterweights help maximize productivity throughout the workday.
Measuring only 36 inches wide with standard tracks, the MT100 accesses confined spaces with ease, while rugged rubber tracks maintain traction and flotation in soft, wet and muddy ground conditions.

The Bobcat MT100 is built to keep ownership simple and costs under control. Easy-access service points help streamline routine maintenance, while a durable undercarriage is engineered to withstand rugged conditions.
Designed for long service life and dependable performance, the MT100 helps reduce downtime, simplify upkeep and deliver the low cost of ownership hardworking crews demand.

The MT100 is engineered to maximize uptime and minimize maintenance. Permanently lubricated (sealed) rollers and idlers reduce undercarriage maintenance. The rollers and idlers are heat treated to minimize wear from everyday operation, enhancing durability and extending the life of the track system.
High-strength steel exterior panels provide exceptional strength and protection for critical machine components, helping the MT100 withstand the rigors of daily use. The result is more time working and less time spent on maintenance and repairs.

MT100 Mini-Track Loader Performance & Specs
Engine Model | D902-E4B-BC-1 |
Horsepower | 24.8 hp |
Ground Pressure (Standard Tracks) | 5.3 psi |
Ground Pressure (Optional Tracks) | 4 psi |
Rated Operating Capacity (ISO) | 1000 lbs |
Operating Weight | 3390 lbs |
Travel Speed - Forward | 4.1 mph |
Travel Speed - Reverse | 2.9 mph |
System Relief @ Quick Couplers | 2900 psi |
Auxiliary Std Flow | 11 gpm |
Length without Attachment | 84.5 in |
Width | 35.6 in |
Height to Bucket Hinge Pin | 80.9 in |
Reach @ Maximum Height | 18.6 in |
Track Width - Standard | 7.1 in |
Track Width - Wide | 9.8 in |
Engine Model | D902-E4B-BC-1 |
Horsepower | 24.8 hp |
Displacement | 55 cubic in |
Ground Pressure (Optional Tracks) | 4 psi |
Ground Pressure (Standard Tracks) | 5.3 psi |
Rated Operating Capacity (ISO) | 1,000 lbs |
Tipping Load | 2,898 lbs |
Operating Weight | 3,390 lbs |
Travel Speed - Forward | 4.1 mph |
Travel Speed - Low | 4.1 mph |
Travel Speed - Reverse | 2.9 mph |
Travel Speed - High | 4.1 mph |
Fuel Tank | 7 gal |
System Relief @ Quick Couplers | 2,900 psi |
Auxiliary Std Flow | 11 gpm |
Length without Attachment | 84.5 in |
Width | 35.6 in |
Height to Bucket Hinge Pin | 80.9 in |
Reach @ Maximum Height | 18.6 in |
Track Width - Wide | 9.8 in |
Track Width - Standard | 7.1 in |
Bob-Tach Attachment System | Optional |
Common Industry Interface | Optional |
