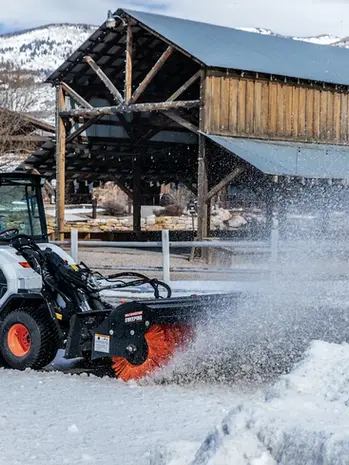

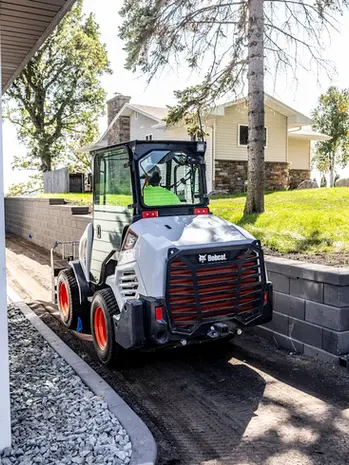

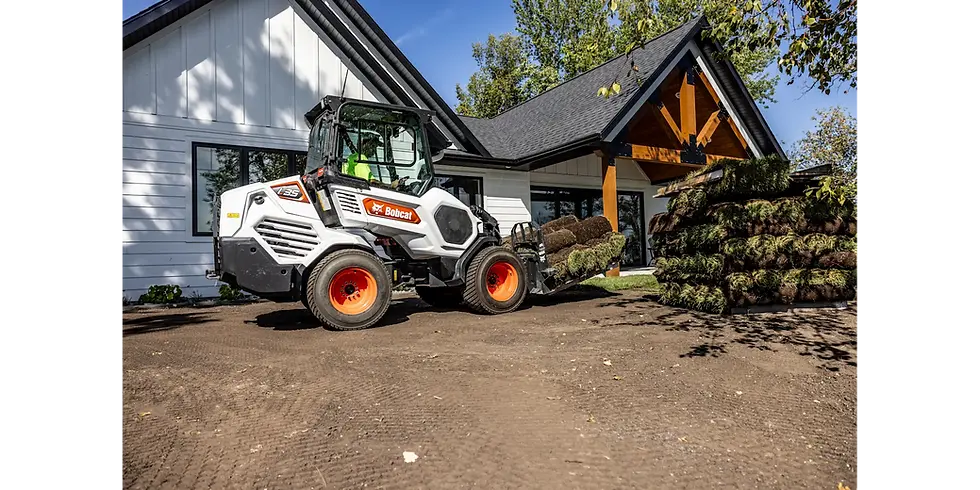

L35 Small Articulated Loader
Specification Value Model L35 Horsepower 57 hp Rated Operating Capacity (ISO) (Articulated) 1,695 lbs Rated Operating Capacity (ISO) (Straight) 2,072 lbs Operating Weight 6,012 lbs Lift Breakout Force (ISO) 4,000 lbf Auxiliary Std Flow 18 gpm Width (over tires) 52.4 in Ride Control Optional Engine L35 Horsepower 57 hp Turbocharged Engine Standard Performance L35 Rated Operating Capacity (ISO) (Articulated) 1,695 lbs Rated Operating Capacity (ISO) (Straight) 2,072 lbs ROC with Counterweight Option - Articulated 2,017 lbs ROC with Counterweight Option - Straight 2,472 lbs Operating Weight 6,012 lbs Travel Speed 16.2 mph Lift Breakout Force (ISO) 4,000 lbf Capacities L35 Fuel Tank 13.5 gal Hydraulic System L35 System Relief @ Quick Couplers 3,045 psi Auxiliary Std Flow 18 gpm Auxiliary High Flow 25.3 gpm Dimensions L35 Articulation Angle 43 deg Height to Bucket Hinge Pin - Extended 114.8 in Length 148.5 in Outside Turning Radius 111.2 in Inside Turning Radius 92.8 in Height to Bucket Hinge Pin - Retracted 88.2 in Length with Standard Bucket 148.5 in Length without Attachment 110.9 in Width (with bucket) 54 in Width (over tires) 52.4 in Height with Operator Cab 82.2 in Reach @ Maximum Height 38.6 in Dump Angle @ Maximum Height 40 deg Ground Clearance 6.5 in Rollback Angle 32 deg Wheelbase 57.2 in Tire Size 26X12-12 10 PLY Wheel Tread 40.3 in Controls L35 Auxiliary Hydraulics Type Finger Tip Control Drive System L35 Main Drive Hydrostatic pump driving 4 independent wheel motors Features L35 Front and Rear Work Lights Standard Air Conditioning Optional Adjustable Seat Standard Backup Alarm Standard BICS System (Interlock) Standard Cab Enclosure Optional ROPS/FOPS Approved Standard Cab Heater Optional Operating Lights Standard Traction Control Optional Auto Idle Optional Radio Optional Turbocharged Engine Standard Rear Window Optional Rotating Flashing Beacon Optional Lift-Arm Support Standard Grab Handles N/A Seat Belt Standard Suspension Seat Standard Turn Signals Optional Two Speed Travel Standard Deluxe Instrumentation Not Applicable High Flow Option Optional Auxiliary Hydraulics Standard Spark Arrestor Muffler Standard Bob-Tach Attachment System Standard Tires-Ply Rating 10 Heavy-Duty Float Tires Optional Power Bob-Tach Optional Ride Control Optional Cup Holder Standard Horn Standard
