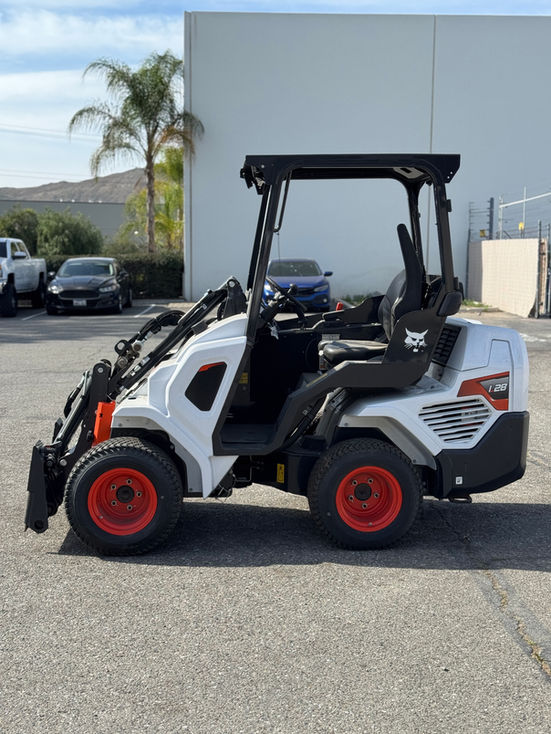

L28 Small Articulated Loader
Horsepower:
24.8 hp
Operating Weight:
24.8 lbs
Operating Capacity:
1534 lbs
Attachments:
37
Explore the Bobcat® L28 small articulated loader for sale, built for compact access, telescoping lift performance, turf-friendly operation, landscaping, hardscaping, property maintenance, snow removal, grounds care, construction support, material handling, pallet work, mulch moving, soil handling, gravel transport, debris cleanup, nursery work, agriculture, rental fleet support, and tight-space productivity. With 24.8 horsepower, 4,195-pound operating weight, 1,534-pound rated operating capacity straight, 1,222-pound rated operating capacity articulated, 1,952-pound rated operating capacity with counterweight option straight, 1,475-pound rated operating capacity with counterweight option articulated, 8.3 mph travel speed, 11.4 gpm auxiliary standard flow, 46.5-inch width over tires, 50-inch width with bucket, 104.4-inch height to bucket hinge pin extended, 30.9-inch reach at maximum height, 43-degree articulation angle, 100.9-inch outside turning radius, telescoping lift arm, Bob-Tach® attachment system, and compact Bobcat loader maneuverability, the L28 helps operators work efficiently in fenced landscapes, backyards, pens, narrow pathways, established turf, and confined jobsites. Ideal for landscapers, hardscape crews, contractors, municipalities, rental fleets, nurseries, farms, acreage owners, and property maintenance teams, the Bobcat L28 delivers versatile small articulated loader productivity with extra lift height, added reach, compact size, and low ground disturbance. Explore Bobcat L28 availability, pricing, attachments, features, financing options, and dealer support through Bobcat GDN today.
L28 Small Articulated Loader Key Features
The Bobcat L28 small articulated loader is designed for operators who need compact maneuverability, impressive lifting capability, added reach, turf-friendly operation, fast travel, attachment versatility, and easy operation in tight work areas. Its 24.8-horsepower engine, 4,195-pound operating weight, 1,534-pound rated operating capacity straight, 1,222-pound rated operating capacity articulated, 8.3 mph travel speed, 11.4 gpm auxiliary standard flow, and 46.5-inch width over tires make it a practical choice for moving mulch, soil, sod, gravel, plants, pavers, debris, snow, pallets, tools, supplies, and property maintenance materials. With a telescoping lift arm, tight-turning articulation joint, compact footprint, low ground disturbance, strong hydraulic performance, and useful lift height and reach, the L28 helps crews replace hand labor with machine-powered productivity while working in sensitive and restricted areas.
L28 Small Articulated Loader Performance & Specs
Main Drive | Hydrostatic drive with 4 individual drive motors |
Horsepower | 24.8 hp |
Rated Operating Capacity (ISO) (Articulated) | 1222 lbs |
Rated Operating Capacity (ISO) (Straight) | 1534 lbs |
Operating Weight | 4195 lbs |
Auxiliary Std Flow | 11.4 gpm |
Width (over tires) | 46.5 in |
Horsepower | 24.8 hp |
Fuel Reserve | 1.1 gph |
Rated Operating Capacity (ISO) (Articulated) | 1222 lbs |
ROC with Counterweight Option - Straight | 1952 lbs |
ROC with Counterweight Option - Articulated | 1475 lbs |
Rated Operating Capacity (ISO) (Straight) | 1534 lbs |
Operating Weight | 4195 lbs |
Travel Speed | 8.3 mph |
Fuel Tank | 9.6 gal |
System Relief @ Quick Couplers | 2900 psi |
Auxiliary Std Flow | 11.4 gpm |
Outside Turning Radius | 100.9 in |
Inside Turning Radius | 78.2 in |
Height to Bucket Hinge Pin - Retracted | 85.4 in |
Height to Bucket Hinge Pin - Extended | 104.4 in |
Articulation Angle | 43 deg |
Length with Standard Bucket | 122.4 in |
Length without Attachment | 93.2 in |
Width (with bucket) | 50 in |
Width (over tires) | 46.5 in |
Reach @ Maximum Height | 30.9 in |
Dump Angle @ Maximum Height | 40 deg |
Ground Clearance | 5.5 in |
Rollback Angle | 32 deg |
Wheelbase | 47.2 in |
Tire Size | 23X10.5-12, 8 PLY |
Wheel Tread | 36.4 in |
Front and Rear Work Lights | Standard |
Air Conditioning | Not Applicable |
Backup Alarm | Standard |
Cab Enclosure | Optional |
Cab Heater | Optional |
Operating Lights | Optional |
Turbocharged Engine | Not Applicable |
Rear Window | Optional |
Rotating Flashing Beacon | Optional |
Lift-Arm Support | Standard |
Grab Handles | N/A |
Suspension Seat | Standard |
Turn Signals | Optional |
Two Speed Travel | Not Applicable |
Deluxe Instrumentation | Not Applicable |
Hydraulic Bucket Positioning | Standard |
Auxiliary Hydraulics | Standard |
Spark Arrestor Muffler | Standard |
Bob-Tach Attachment System | Standard |
Tires-Ply Rating | 8 |
Cup Holder | Standard |
Horn | Standard |
