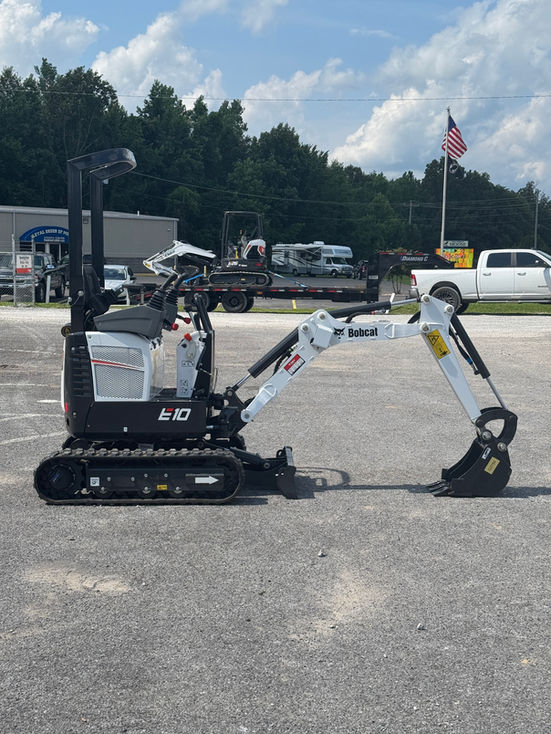

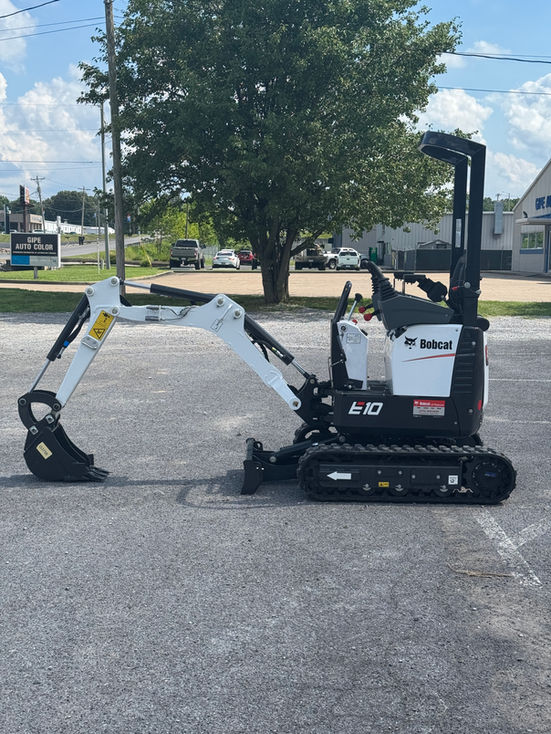

E10 Compact Excavator

Horsepower:

10.2 hp

Operating Weight:

2593 lbs

Maximum Dig Depth:

6 ft

Attachments:

23

Explore the Bobcat® E10 compact excavator for sale, built for ultra-compact access, zero tail swing maneuverability, precise digging, minimal ground disturbance, easy transport, tight-space excavation, landscaping, utility work, property maintenance, interior demolition support, trenching, grading, backfilling, and small jobsite productivity. As the smallest excavator in the Bobcat lineup, the E10 delivers big performance in areas where hand labor may otherwise be the only option. With a retractable blade and undercarriage, 28-inch retracted width, 43-inch working stance, fold-down Tip-Over Protective Structure, ergonomic controls, 2-speed travel, and zero tail swing rotation, the Bobcat E10 is ideal for contractors, landscapers, utility crews, property owners, municipalities, rental fleets, and construction professionals who need dependable mini excavator performance in hard-to-reach spaces. Explore Bobcat E10 availability, pricing, attachments, features, and dealer support through Bobcat GDN today.

E10 Compact Mini Excavator Key Features

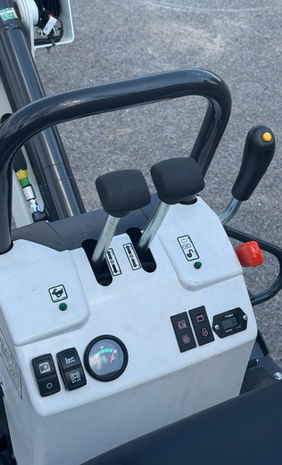

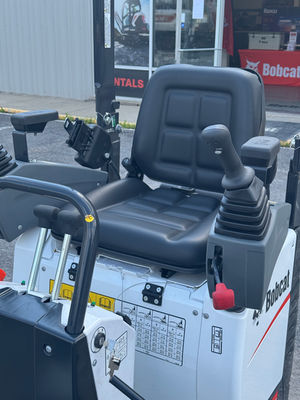

The Bobcat E10 compact excavator is designed for operators who need a small, easy-to-transport machine that can access confined jobsites and complete demanding excavation work with minimal disturbance. Its hydraulically retractable undercarriage and blade allow the machine to narrow to just 28 inches for passing through standard doorways, gates, tight property lines, and narrow access points, then expand to a 43-inch stance for working stability. With zero tail swing, ergonomic controls, 2-speed travel, and a fold-down TOPS, the E10 helps operators dig, trench, grade, level, backfill, and work close to structures with confidence.

E10 Compact Mini Excavator Performance & Specs

Engine Model	D722-E4B-BCZ-6
Horsepower	10.2 hp
Turbocharged Engine	Not Applicable
Operating Weight	2593 lbs
Arm Digging Force - Standard Arm	1248 lbf
Travel Speed (Maximum)	1.7 mph
Bucket Digging Force	1865 lbf
Dig Depth - Standard Arm	6 ft
Max Dump Height - Standard Arm	6 ft
Reach at Ground Level - Standard Arm	10.2 ft
Overall Transport Length - Standard Arm	110 in
Width	28 in
Cab Height	87 in
Tail Swing Overhang - Standard Arm	0 in

Engine Model	D722-E4B-BCZ-6
Horsepower	10.2 hp
Maximum Governed RPM	2370 rpm
Turbocharged Engine	Not Applicable

Operating Weight	2593 lbs
Weight Class	1 t
Travel Speed - Low	1.3 mph
Arm Digging Force - Standard Arm	1248 lbf
Bucket Digging Force	1865 lbf
Travel Speed (Maximum)	1.7 mph
Rated Lift Capacity	965 lbs
Lift Radius	79 in
Boom Swing - Left	67 deg
Boom Swing - Right	64 deg
Dig Depth - Standard Arm	6 ft
Max Dump Height - Standard Arm	6 ft
Reach at Ground Level - Standard Arm	10.2 ft

Fuel Tank

4.2 gal

Auxiliary Pressure	2756 psi
Auxiliary Std Flow	5.3 gpm

Length	110 in
Overall Transport Length - Standard Arm	110 in
Width	28 in
Cab Height	87 in
Tail Swing Overhang - Standard Arm	0 in

Air Conditioning	Not Applicable
Swing Boom	Standard
Cab Enclosure	Not Applicable
Cab Heater	Not Applicable
Heater Air Conditioning	Not Applicable
Radio	Not Applicable
Engine Shutdown	Not Applicable
Auxiliary Hydraulics	Standard
Secondary Auxiliary Hydraulics	Not Applicable
Quick Tach System	Not Applicable
Rubber Track	Standard
Selectable Auxiliary Hydraulic Flow	Not Applicable
Angle Blade	Not Applicable
