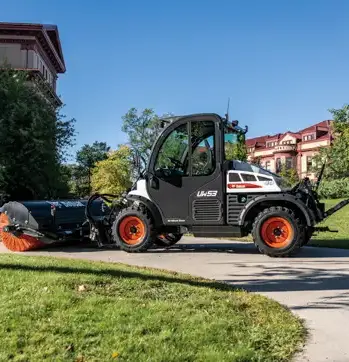

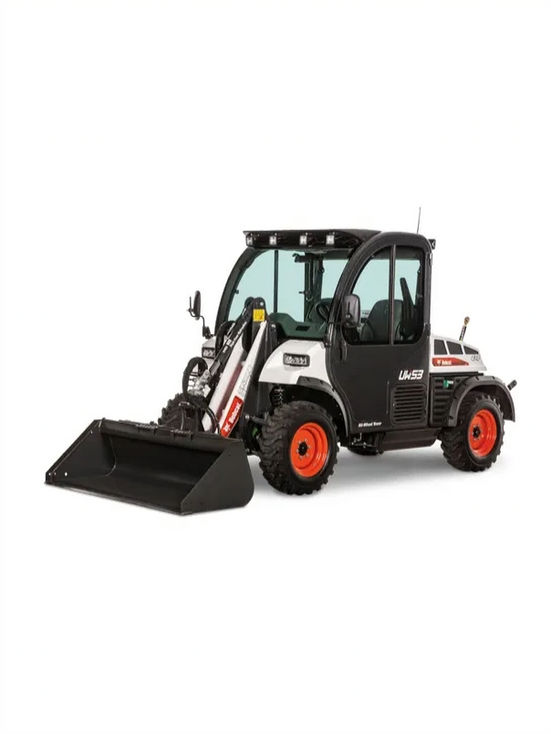

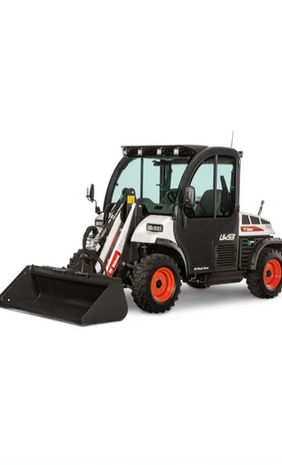

UW53 Toolcat Utility Work Machine
Horsepower:
61 hp
Operating Weight:
5710 lbs
Operating Capacity:
1500 lbs
Attachments:
N/A
With 61 hp, a turbocharged Bobcat® Tier 4 diesel engine, all-wheel steering and a 1,500-pound rated lift capacity, the Bobcat® UW53 Toolcat™ utility work machine delivers versatile performance for demanding property maintenance and material-handling operations. The UW53 combines a three-point hitch with 1,775 pounds of lift capacity, a 25 hp PTO, auxiliary hydraulic flow up to 27.9 gpm and a 4,000-pound towing capacity for operating multiple implements, handling varied tasks and maximizing productivity year-round.
UW53 Toolcat Utility Work Machine Key Features
The Bobcat UW53 Toolcat utility work machine is designed for operators who need loader-style attachment performance, utility vehicle convenience, tractor implement capability, all-wheel steering, and year-round comfort in one productive machine. Its 61-horsepower turbocharged engine, 5,710-pound operating weight, 1,500-pound rated operating capacity, 2,200-pound machine rated capacity, 4,200-pound total vehicle rated capacity, 25 PTO horsepower, 540 rpm rear PTO, 1,775-pound 3-point lift capacity at 24 inches behind the lift point, 18.8 gpm auxiliary standard flow, 27.9 gpm auxiliary high flow, and hydrostatic four-wheel drive system make it a strong choice for mowing, snow removal, tilling, grading, trenching, sweeping, pallet handling, hauling, towing, spreading, digging post holes, maintaining grounds, and managing properties. With a 3-point hitch, rear PTO, all-wheel steer, high-flow hydraulics, front Bob-Tach attachment compatibility, rear implement capability, enclosed HVAC cab, and 5-inch display, the UW53 helps crews maximize productivity in every season.
UW53 Toolcat Utility Work Machine Performance & Specs
Rated Operating Capacity (SAE) | 1500 lbs |
Auxiliary Std Flow | 18.8 gpm |
Auxiliary High Flow | 27.9 gpm |
Inner Turn Radius | 50.5 in |
Horsepower | 61 hp |
Rated Operating Capacity (SAE) | 1500 lbs |
Operating Weight | 5710 lbs |
Travel Speed - Low | 8 mph |
Travel Speed - Reverse | 8 mph |
Machine Rated Capacity | 2200 lbs |
Lift Capacity at 24in Behind Lift Point | 1775 lbs |
3-pt Lift Control Type | Hydraulic Position Control System |
Rear PTO - RPM | 540 |
PTO HP | 25 hp |
Fuel Tank | 20 gal |
Total Vehicle Rated Capacity | 4200 lbs |
Auxiliary Pressure | 3000 psi |
Auxiliary Std Flow | 18.8 gpm |
Auxiliary High Flow | 27.9 gpm |
Length | 180.8 in |
Length without Attachment | 153.8 in |
Width (with bucket) | 62 in |
Width | 60 in |
Ground Clearance | 8 in |
Inner Turn Radius | 50.5 in |
Outside Turning Diameter | 210 in |
Joystick Control | Standard |
Hydrostatic Transmission | Standard |
Enclosed Operator Cab (ROPS/FOPS) | Standard |
ROPS/FOPS Approved | Yes |
Heater Air Conditioning | Standard |
Work Lights | Standard |
Radio | Standard |
Turbocharged Engine | Standard |
Lift-Arm Support | Standard |
Suspension Seat | Optional |
All Wheel Steer | Standard |
Two Speed Travel | Standard |
Engine Shutdown | Standard |
Auxiliary Hydraulics | Standard |
Bob-Tach Attachment System | Standard |
