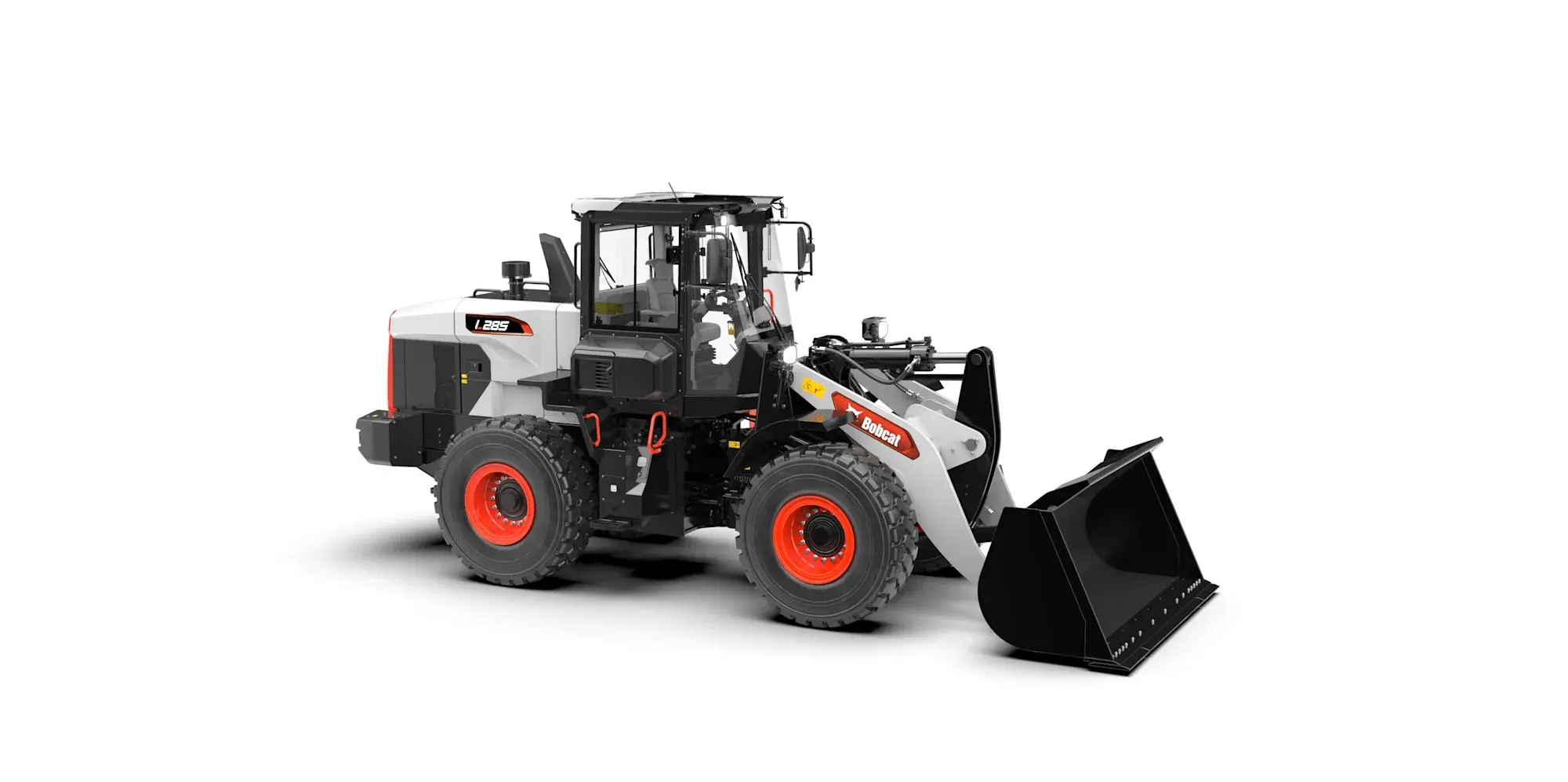

L285 Large Wheel Loader
Horsepower:
189 hp
Operating Weight:
34487 lbs
Operating Capacity:
13682 lbs
Attachments:
N/A
With 189 hp, a 34,487-pound operating weight, 13,682-pound rated operating capacity and 3.5- to 5.5-cubic-yard bucket capacity, the Bobcat® L285 large wheel loader delivers exceptional lifting power for demanding material handling and heavy loading operations. The L285 combines three selectable power modes, a powershift transmission, automatic ride control, heavy-duty Z-bar linkage and a spacious operator cab with an 8-inch touchscreen display for increased productivity, operator comfort and simplified daily maintenance.
L285 Large Wheel Loader Key Features
The Bobcat L285 large wheel loader is designed for operators who need maximum lifting capability, high-production bucket capacity, powerful hydraulic performance, smooth efficient control, excellent visibility, and all-day operator comfort. Its 189-horsepower engine, 34,487-pound operating weight, 13,682-pound rated operating capacity with bucket straight, 12,061-pound rated operating capacity with bucket articulated, 27,364-pound tipping capacity with bucket straight, 24,121-pound tipping capacity with bucket articulated, 3.5- to 5.5-cubic-yard bucket capacity range, 64.9 gpm main pump flow, 66 gpm third spool max flow, and 22.1 mph maximum forward travel speed make it a powerful choice for loading trucks, carrying aggregate, moving snow, handling pallets, stockpiling material, grading, backdragging, roadwork, and working across large jobsites. With three transmission modes, three power modes, joystick controls, standard ride control, Z-Bar linkage, standard auxiliary hydraulics, optional quick coupler, and a comfortable cab with an 8-inch touch display, the L285 helps crews match machine performance to the job while improving productivity, fuel efficiency, uptime, and operator confidence.
L285 Large Wheel Loader Performance & Specs
Main Drive | Power Shift 4F/4R |
Horsepower | 189 hp |
Tipping Capacity with Bucket (Straight) | 27364 lbs |
Tipping Capacity with Bucket (Articulated) | 24121 lbs |
Rated Operating Capacity with Bucket (Articulated) | 12061 lbs |
Rated Operating Capacity with Bucket (Straight) | 13682 lbs |
Bucket Capacities | 3.5-5.5 yd3 (2.6-4.2 m3) |
Max. Travel Speed – Forward | 22.1 mph |
Operating Weight | 34487 lbs |
Max. Travel Speed – Reverse | 15 mph |
3rd Spool Max. Flow Rate | 66 gpm |
3rd Spool Pressure | 4351 psi |
Length with Standard Bucket | 315 in |
Length without Attachment | 260.6 in |
Width (with bucket) | 107.9 in |
Height to Bucket Hinge Pin | 155.5 in |
Horsepower | 189 hp |
Rated Operating Capacity with Forks (Straight) | 8251 lbs |
Rated Operating Capacity with Forks (Articulated) | 7170 lbs |
Tipping Capacity with Bucket (Straight) | 27364 lbs |
Tipping Capacity with Bucket (Articulated) | 24121 lbs |
Rated Operating Capacity with Bucket (Articulated) | 12061 lbs |
Rated Operating Capacity with Bucket (Straight) | 13682 lbs |
Bucket Capacities | 3.5-5.5 yd3 (2.6-4.2 m3) |
Max. Travel Speed – Forward | 22.1 mph |
Operating Weight | 34487 lbs |
Max. Travel Speed – Reverse | 15 mph |
Fuel Tank | 62.1 gal |
Main Pump Pressure | 3844 psi |
3rd Spool Max. Flow Rate | 66 gpm |
3rd Spool Pressure | 4351 psi |
Main Pump Max. Flow Rate | 64.9 gpm |
Inside Turning Radius With Bucket | 243.8 in |
Articulation Angle | 40 deg |
Outside Turning Radius | 216.9 in |
Length with Standard Bucket | 315 in |
Length without Attachment | 260.6 in |
Width (with bucket) | 107.9 in |
Height with Operator Cab | 132.2 in |
Width (w/out Attachment) | 103.9 in |
Height to Bucket Hinge Pin | 155.5 in |
Dump Angle @ Maximum Height | 46 deg |
Ground Clearance | 17 in |
Rollback Angle | 49 deg |
Wheelbase | 120 in |
Tire Size | 20.5R25 L3 |
Wheel Tread | 80.3 in |
Z-Bar Linkage | Standard |
Joystick Control | Standard |
Non-DPF | Standard |
Return to Dig | Standard |
Inching Control | Standard |
Quick Coupler | Optional |
Auxiliary Hydraulics | Standard |
Ride Control | Standard |
