L255 Large Wheel Loader
Horsepower:
172 hp
Operating Weight:
30903 lbs
Operating Capacity:
12420 lbs
Attachments:
N/A

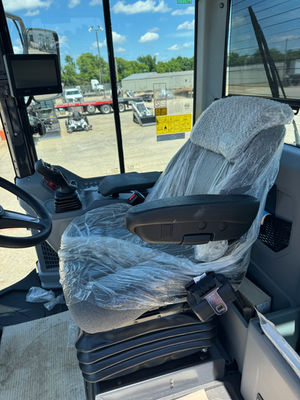

With 172 hp, a 30,903-pound operating weight, 12,420-pound rated operating capacity and 3.5- to 5.0-cubic-yard bucket capacity, the Bobcat® L255 large wheel loader delivers optimized power for high-volume material handling and heavy loading operations. The L255 combines three selectable power modes, a powershift transmission, automatic ride control, Z-bar linkage and a spacious operator cab with an 8-inch touchscreen display for increased productivity, operator comfort and simplified daily maintenance.
L255 Large Wheel Loader Key Features
The Bobcat L255 large wheel loader is designed for operators who need high-production lifting capacity, fast travel, powerful hydraulic performance, excellent visibility, smooth controls, and all-day operator comfort. Its 172-horsepower engine, 30,903-pound operating weight, 12,420-pound rated operating capacity with bucket straight, 10,947-pound rated operating capacity with bucket articulated, 24,839-pound tipping capacity with bucket straight, 21,894-pound tipping capacity with bucket articulated, 3.5- to 5.0-cubic-yard bucket capacity range, 40.9 gpm hydraulic flow, and 23.3 mph maximum forward travel speed make it a strong choice for loading trucks, carrying aggregate, moving snow, handling pallets, stockpiling material, grading, backdragging, roadwork, and working across large jobsites. With three transmission modes, three power modes, joystick controls, standard ride control, Z-Bar linkage, standard auxiliary hydraulics, optional quick coupler, return-to-dig, and a comfortable cab with an 8-inch touch display, the L255 helps crews match machine performance to the job while improving productivity, fuel efficiency, and uptime.
L255 Large Wheel Loader Performance & Specs
Main Drive | Power Shift 4F/4R |
Horsepower | 172 hp |
Tipping Capacity with Bucket (Straight) | 24839 lbs |
Tipping Capacity with Bucket (Articulated) | 21894 lbs |
Rated Operating Capacity with Bucket (Articulated) | 10947 lbs |
Rated Operating Capacity with Bucket (Straight) | 12420 lbs |
Bucket Capacities | 3.5-5.0 yd3 (2.6-3.8 m3) |
Max. Travel Speed – Forward | 23.3 mph |
Operating Weight | 30903 lbs |
Max. Travel Speed – Reverse | 14.9 mph |
3rd Spool Max. Flow Rate | 40.9 gpm |
3rd Spool Pressure | 4351 psi |
Length with Standard Bucket | 311 in |
Length without Attachment | 256.6 in |
Width (with bucket) | 107.9 in |
Height to Bucket Hinge Pin | 151.5 in |
Horsepower | 172 hp |
Rated Operating Capacity with Forks (Straight) | 7577 lbs |
Rated Operating Capacity with Forks (Articulated) | 6582 lbs |
Tipping Capacity with Bucket (Straight) | 24839 lbs |
Tipping Capacity with Bucket (Articulated) | 21894 lbs |
Rated Operating Capacity with Bucket (Articulated) | 10947 lbs |
Rated Operating Capacity with Bucket (Straight) | 12420 lbs |
Bucket Capacities | 3.5-5.0 yd3 (2.6-3.8 m3) |
Max. Travel Speed – Forward | 23.3 mph |
Operating Weight | 30903 lbs |
Max. Travel Speed – Reverse | 14.9 mph |
Fuel Tank | 62.1 gal |
Main Pump Pressure | 3844 psi |
3rd Spool Max. Flow Rate | 40.9 gpm |
3rd Spool Pressure | 4351 psi |
Main Pump Max. Flow Rate | 40.9 gpm |
Inside Turning Radius With Bucket | 240.3 in |
Articulation Angle | 40 deg |
Outside Turning Radius | 216.8 in |
Length with Standard Bucket | 311 in |
Length without Attachment | 256.6 in |
Width (with bucket) | 107.9 in |
Height with Operator Cab | 130.3 in |
Width (w/out Attachment) | 101 in |
Height to Bucket Hinge Pin | 151.5 in |
Dump Angle @ Maximum Height | 48 deg |
Ground Clearance | 17 in |
Rollback Angle | 48 deg |
Wheelbase | 120 in |
Tire Size | 20.5R25 L3 |
Wheel Tread | 80.3 in |
Z-Bar Linkage | Standard |
Joystick Control | Standard |
Non-DPF | Standard |
Return to Dig | Standard |
Inching Control | Standard |
Quick Coupler | Optional |
Auxiliary Hydraulics | Standard |
Ride Control | Standard |
