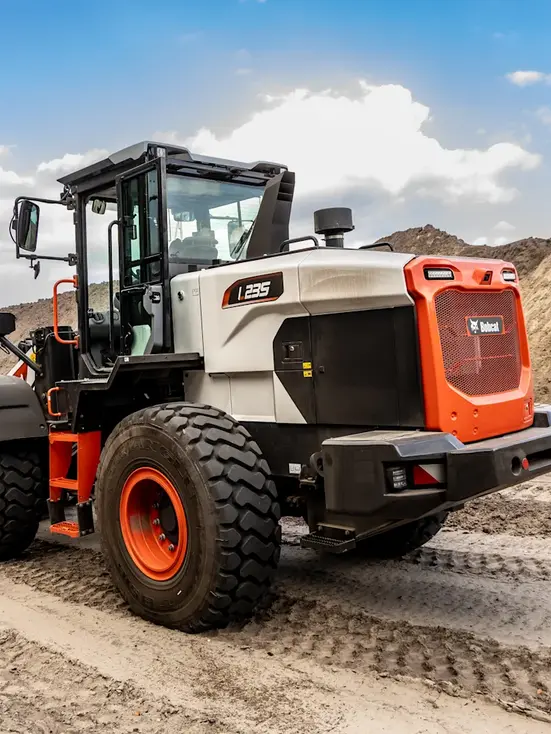

L235 Large Wheel Loader
Horsepower:
159 hp
Operating Weight:
29488 lbs
Operating Capacity:
11926 lbs
Attachments:
N/A
With 159 hp, a 29,488-pound operating weight, 3.0- to 4.5-cubic-yard bucket capacity and heavy-duty Z-bar linkage, the Bobcat® L235 large wheel loader delivers optimized power for high-volume material handling and heavy loading operations. The L235 combines three selectable power modes, automatic ride control, impressive breakout forces, fast travel speeds and a premium operator cab with an 8-inch touchscreen display for increased productivity, operator comfort and simplified daily maintenance.
L235 Large Wheel Loader Key Features
The Bobcat L235 large wheel loader is designed for operators who need high-production lifting capacity, fast travel, powerful hydraulic performance, excellent visibility, smooth controls, and all-day operator comfort. Its 159-horsepower engine, 29,488-pound operating weight, 11,926-pound rated operating capacity with bucket straight, 10,512-pound rated operating capacity with bucket articulated, 23,853-pound tipping capacity with bucket straight, 21,025-pound tipping capacity with bucket articulated, 3.0- to 4.5-cubic-yard bucket capacity range, 40.9 gpm hydraulic flow, and 24.2 mph maximum forward travel speed make it a strong choice for loading trucks, carrying aggregate, moving snow, handling pallets, stockpiling material, grading, backdragging, roadwork, and working across large jobsites. With three transmission modes, three power modes, joystick controls, standard ride control, Z-Bar linkage, standard auxiliary hydraulics, optional quick coupler, and a comfortable cab with an 8-inch touch display, the L235 helps crews match machine performance to the job while improving productivity, fuel efficiency, and uptime.
L235 Large Wheel Loader Performance & Specs
Main Drive | Power Shift 4F/4R |
Horsepower | 159 hp |
Tipping Capacity with Bucket (Straight) | 23853 lbs |
Tipping Capacity with Bucket (Articulated) | 21025 lbs |
Rated Operating Capacity with Bucket (Articulated) | 10512 lbs |
Rated Operating Capacity with Bucket (Straight) | 11926 lbs |
Bucket Capacities | 3.0-4.5 yd3 (2.2-3.4 m3) |
Max. Travel Speed – Forward | 24.2 mph |
Operating Weight | 29488 lbs |
Max. Travel Speed – Reverse | 18.6 mph |
3rd Spool Max. Flow Rate | 40.9 gpm |
3rd Spool Pressure | 4061 psi |
Length with Standard Bucket | 307.6 in |
Length without Attachment | 256.6 in |
Width (with bucket) | 100.4 in |
Height to Bucket Hinge Pin | 151.5 in |
Horsepower | 159 hp |
Rated Operating Capacity with Forks (Straight) | 7249 lbs |
Rated Operating Capacity with Forks (Articulated) | 6292 lbs |
Tipping Capacity with Bucket (Straight) | 23853 lbs |
Tipping Capacity with Bucket (Articulated) | 21025 lbs |
Rated Operating Capacity with Bucket (Articulated) | 10512 lbs |
Rated Operating Capacity with Bucket (Straight) | 11926 lbs |
Bucket Capacities | 3.0-4.5 yd3 (2.2-3.4 m3) |
Max. Travel Speed – Forward | 24.2 mph |
Operating Weight | 29488 lbs |
Max. Travel Speed – Reverse | 18.6 mph |
Fuel Tank | 62.1 gal |
Main Pump Pressure | 3626 psi |
3rd Spool Max. Flow Rate | 40.9 gpm |
3rd Spool Pressure | 4061 psi |
Main Pump Max. Flow Rate | 40.9 gpm |
Inside Turning Radius With Bucket | 236.4 in |
Articulation Angle | 40 deg |
Outside Turning Radius | 212.7 in |
Length with Standard Bucket | 307.6 in |
Length without Attachment | 256.6 in |
Width (with bucket) | 100.4 in |
Height with Operator Cab | 130.3 in |
Width (w/out Attachment) | 98.4 in |
Height to Bucket Hinge Pin | 151.5 in |
Dump Angle @ Maximum Height | 48 deg |
Ground Clearance | 17 in |
Rollback Angle | 48 deg |
Wheelbase | 120 in |
Tire Size | 20.5R25 L3 |
Wheel Tread | 75.9 in |
Z-Bar Linkage | Standard |
Joystick Control | Standard |
Non-DPF | Standard |
Return to Dig | Standard |
Inching Control | Standard |
Quick Coupler | Optional |
Auxiliary Hydraulics | Standard |
Ride Control | Standard |
