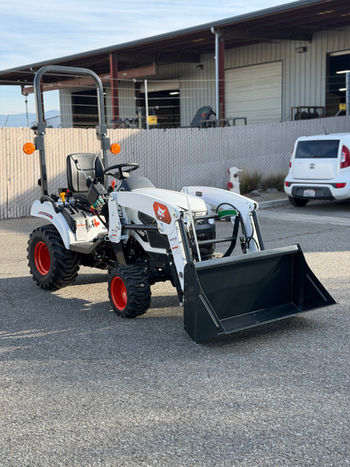

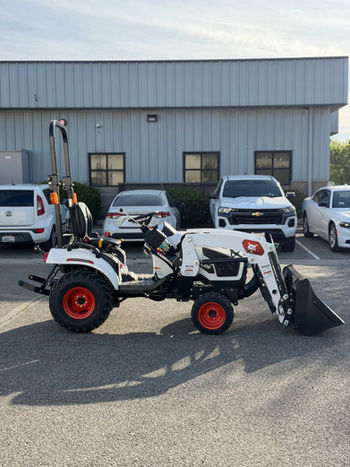

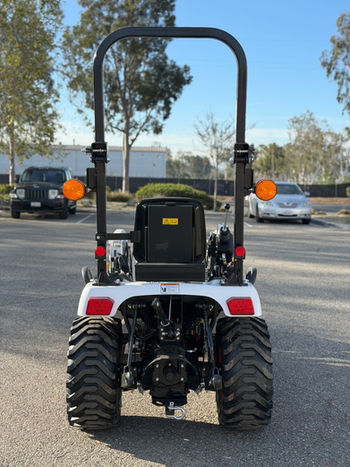

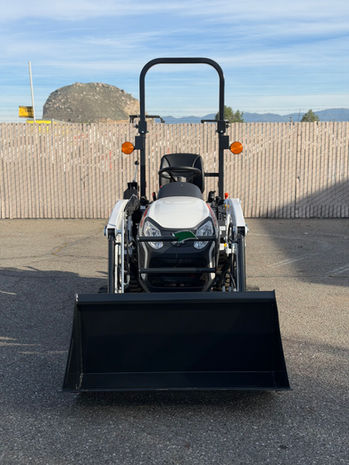

CT1025 Sub-Compact Tractor
Horsepower:
24.5 hp
Operating Weight:
1521 lbs
Operating Capacity:
608 lbs
Attachments:
36
With 24.5 hp, a 1,521-pound operating weight, four-wheel drive and a compact 45.7-inch width, the Bobcat® CT1025 sub-compact tractor delivers added power and maneuverability for property maintenance, landscaping and light-duty agricultural projects. The CT1025 combines a clutch-free two-range hydrostatic transmission, 18.8 PTO horsepower, independent rear PTO, standard mid-PTO and a Limited Category 1 three-point hitch for versatile implement compatibility, efficient operation and increased productivity around your property.
CT1025 Sub-Compact Tractor Key Features
The Bobcat CT1025 sub-compact tractor is designed for operators who need more horsepower than a lawn and garden tractor while still needing compact handling for mowing, landscaping, and light-duty property projects. Its 25-horsepower performance, four-wheel drive traction, 2-range hydrostatic transmission, rear and mid-PTO capability, and Limited Category 1 three-point hitch help owners mow acreage, till gardens, grade driveways, rake debris, clear brush, move snow, dig post holes, and maintain small properties efficiently. Whether you are working around a home, barn, shed, fence line, wooded area, driveway, or landscaped property, the CT1025 delivers practical Bobcat tractor capability in a maneuverable sub-compact size.
CT1025 Sub-Compact Tractor Performance & Specs
Horsepower | 24.5 hp |
Max Lift Height to Bucket Pivot Pin | 72 in |
Lift Capacity at 24 in Behind Lift Point | 700 lbs |
Front End Loader Lift Capacity at Max Height | 608 lbs |
PTO HP | 18.8 hp |
Length | 99.3 in |
Width | 45.7 in |
Height | 87.6 in |
Transmission Type | Infinite, 2 Range Hydrostatic |
Horsepower | 24.5 hp |
Engine Model | 3C100LFH-U1 |
Gross HP | 24.5 hp |
Displacement | 62 cubic in |
RPM | 3200 |
Number of Cylinders | 3 |
Max Lift Height to Bucket Pivot Pin | 72 in |
Operating Weight | 1521 lbs |
Travel Speed | 11.1 mph |
Travel Speed - Reverse | 7.6 mph |
Lift Capacity at 24 in Behind Lift Point | 700 lbs |
Front End Loader Lift Capacity at Max Height | 608 lbs |
Rear PTO - RPM | 540 |
PTO HP | 18.8 hp |
Mid PTO - RPM | 2200 |
Fuel Tank | 6.7 gal |
Total Hydraulic Flow | 7.2 gpm |
Length | 99.3 in |
Width | 45.7 in |
Height | 87.6 in |
Ground Clearance | 6.3 in |
Turning Radius | 8.4 ft |
Wheelbase | 55.1 in |
Transmission Type | Infinite, 2 Range Hydrostatic |
Cab Enclosure | Not Applicable |
Rear Work Lights | Optional |
Rear Hydraulics | Optional |
Safety Seat Switch | Standard |
Toolbox | Standard |
Head Lights | Standard |
Tail Lights | Standard |
Hazard Flasher | Standard |
