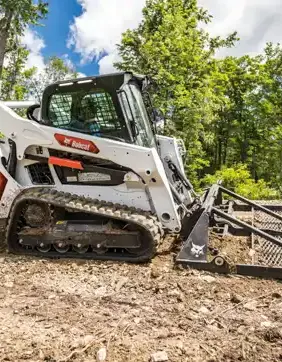

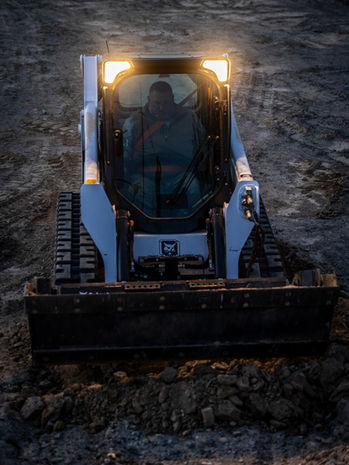

T595 Compact Track Loader
Horsepower:
70 hp
Operating Weight:
7906 lbs
Operating Capacity:
2100 lbs
Attachments:
61
With 70 hp, a 2,100-pound rated operating capacity, vertical lift path and high-flow hydraulics, the Bobcat® Classic T595 compact track loader delivers the lifting performance, attachment versatility and agility needed for demanding jobsites. The T595 combines powerful hydraulic performance, fast cycle times, selectable joystick controls and simplified maintenance to help operators lift higher, load faster and stay productive.
T595 Classic Compact Track Loader Key Features
The Bobcat T595 compact track loader is designed for operators who need vertical-lift reach, dependable lifting power, responsive hydraulics, track-loader traction, low ground pressure, and maneuverability in demanding landscape, construction, utility, and property maintenance applications. Its 70-horsepower engine, 7,906-pound operating weight, 2,100-pound rated operating capacity, 2,200-pound rated operating capacity with 200-pound counterweight, 6,000-pound tipping load, 17.1 gpm auxiliary standard flow, 26.7 gpm auxiliary high flow, 3,450 psi system relief at the quick couplers, 66.6-inch overall width, 119-inch height to hinge pin, and 34.5-inch reach at maximum height make it a strong choice for loading trucks, carrying materials, grading, backfilling, moving snow, hauling mulch, handling pallets, digging, sweeping, and maintaining properties. With a vertical lift path, rubber track undercarriage, standard joystick controls, standard Bob-Tach attachment system, standard auxiliary hydraulics, optional Power Bob-Tach, optional high-flow hydraulics, and Deluxe Display with rearview camera integration, the T595 helps crews complete demanding daily tasks with confidence and efficiency.
T595 Classic Compact Track Loader Performance & Specs
Horsepower | 70 hp |
ROC Solid Undercarriage | 2100 lbs |
Operating Weight | 7906 lbs |
Travel Speed (1-Speed) | 7.1 mph |
Travel Speed - Low (2-Speed) | 7.1 mph |
Travel Speed - High (2-Speed) | 10.4 mph |
Auxiliary Std Flow | 17.1 gpm |
Auxiliary High Flow | 26.7 gpm |
Aux System Pressure | 3500 psi |
Length without Attachment | 104.6 in |
Overall Width | 66.6 in |
Overall Height | 77.6 in |
Height to Hinge Pin | 119 in |
Reach @ Maximum Height | 34.5 in |
Horsepower | 70 hp |
Hydraulic Horsepower - Standard Flow | 34.9 hp |
Hydraulic Horsepower - High Flow | 54.5 hp |
Alternator | 90A |
Battery Size | 650A |
Engine-High Idle | 2600 RPM |
Engine-Low Idle | 1050 RPM |
Air Cleaner Elements | Replacable dry paper cartridge with seperate safety element |
ROC Solid Undercarriage | 2100 lbs |
Rated Operating Capacity 200 lb. Counterweight | 2200 lbs |
Tipping Load | 6000 lbs |
Operating Weight | 7906 lbs |
Travel Speed (1-Speed) | 7.1 mph |
Travel Speed - Low (2-Speed) | 7.1 mph |
Travel Speed - High (2-Speed) | 10.4 mph |
Ground Pressure (Rubber) | 5.1 psi |
Fuel Tank | 36.5 gal |
System Relief @ Quick Couplers | 3450 psi |
Auxiliary Std Flow | 17.1 gpm |
Auxiliary High Flow | 26.7 gpm |
Aux System Pressure | 3500 psi |
Ground Pressure (Standard Tracks) | 5.1 psi |
Length with Standard Bucket | 132.5 in |
Length without Attachment | 104.6 in |
Overall Width | 66.6 in |
Overall Height | 77.6 in |
Height to Hinge Pin | 119 in |
Reach @ Maximum Height | 34.5 in |
Turning Radius | 81.7 in |
Length of track on ground | 54.1 in |
Track Width | 12.6 in |
Track Width - Optional | 15.8 in |
Joystick Control | Standard |
Air Conditioning | Optional |
Backup Alarm | Standard |
BICS System (Interlock) | Standard |
Cab Enclosure | Optional |
ROPS/FOPS Approved | Standard |
ROPS-Step | N/A |
Sound Option | Optional |
Cab Heater | Optional |
Heater Air Conditioning | Optional |
Operating Lights | Standard |
Work Lights | Standard |
Rear Window | Standard |
Top Window | Standard |
Grab Handles | N/A |
Seat Belt | Standard |
Suspension Seat | Standard |
Two Speed Travel | Not Applicable |
Deluxe Instrumentation | Optional |
Lockable Ignition | N/A |
Engine Shutdown | Standard |
Hydraulic Bucket Positioning | Optional |
High Flow Option | Optional |
Auxiliary Hydraulics | Standard |
3-Spool Valve | N/A |
Grease Track Tension | Standard |
Spark Arrestor Muffler | Standard |
Bob-Tach Attachment System | Standard |
Power Bob-Tach | Optional |
ACS (Switchable Controls) | Not Applicable |
Ride Control | Optional |
Horn | Standard |
